Folding Solar Panel

Overview

Essential details

Place of Origin:
Hangzhou, China
Product name
Folding Solar Panel
Type
All Black,
Expanded Size
1090*325*5mm
Type
PERC, Standard Solar Panel
Folded Size
325*255*40mm
Output Port
USB*2+DC5525
Certificate
TUV/CE, ISO9001
Warranty
15years, 25 Years Life Time
Power
40W-4（1*4）
Weight
1.9Kg
Supply Ability
Supply Ability:
50000 Piece/Pieces per Day
Packaging & delivery
Packaging Details:
Wooden case or carton pallet packing
Port
Ningbo
Lead time
Quantity(watts) 1-5000
>5000
Lead time(days
15
To be negotiated



Specification and parameters



No.



MODEL

Supporting



legs



Output port



Expanded Size



Folded Size



Packing Size



Fold

Product



Weight



Rough weight

1

40W-4（1*4）

No

USB*2+DC5525

1090*325*5mm

325*255*40mm

350*280*70mm

4fold

1.3Kg

1.9Kg

2

40W-2（1*2）

No

USB*2+DC5525

750*410*5mm

365*410*20mm

420*420*70mm

2fold

1.7Kg

2.3Kg

3

60W-6（2*3）

No

USB*2+DC5525

970*690*5mm

345*255*55mm

350*280*70mm

6fold

2.1Kg

2.7Kg

4

60W-2（1*2）

Yes

USB*2+DC5525

890*470*5mm

430*470*20mm

440*490*70mm

2fold

2Kg

2.6Kg



5

100W-4



（1*4）



Yes



TYPE-C+USB*2+DC5525



1640*470*5mm



390*470*40mm



410*490*70mm



4fold



3Kg



3.7Kg



6

100W-3



（1*3）



Yes



TYPE-C+USB*2+DC5525



1580*470*5mm



480*470*40mm



510*490*70mm



3fold



2.8Kg



3.5Kg



7

100W-2



（1*2）



Yes



TYPE-C+USB*2+DC5525



1230*545*5mm



575*545*20mm



600*575*70mm



2fold



3.1Kg



3.8Kg



8

120W-4



（1*4）



Yes



TYPE-C+USB*2+DC5525



1700*470*5mm



430*470*40mm



440*490*70mm



4fold



3.5Kg



4.2Kg



9

120W-6



（2*3）



No



TYPE-C+USB*2+DC5525



1200*840*5mm



365*410*55mm



420*420*70mm



6fold



3.7Kg



5Kg



10

150W-3



（1*3）



Yes



TYPE-C+USB*2+DC5525



2320*545*5mm



575*545*35mm



600*575*70



3fold



4.7Kg



5.4Kg



11

200W-4



（1*4）



Yes



TYPE-C+USB*2+DC5525



2170*545*5mm



575*545*40mm



600*575*70mm



4fold



6.1Kg



6.8Kg



12

200W-6



（2*3）



No



TYPE-C+USB*2+DC5525



1580*960*5mm



480*470*55mm



510*490*70mm



6fold



6.6Kg



7.4Kg



13

300W-6



（2*3）



No



TYPE-C+USB*2+DC5525



1780*1110*5mm



575*545*55mm



600*575*70mm



6fold



8.2Kg



8.8Kg



Product introduction and usage

The folding solar panel can be folded and stored when not in use.

When in use, unfold the folding solar panel, the solar panel faces the sun to achieve the maximum power generation efficiency.

It is easy to achieve the solar panel facing the sun at an oblique angle due to the bracket on the back.

Collapsible package assembly without supporting legs, which can be unfolded and laid directly on a flat surface for work.



The product can be output through the smart junction box, which is equipped with USB, TYPE-C, and the 5525 port, corresponding to the maximum output parameters. The indicator light on the smart junction box will light up when the product is working.

Port

USB

TYPE-C

5525

Voltage

5V

TYPE-C PD100

20V

Current

3A

According to the actual power of the

product

According to the actual power of the

product（

Other DC outlets are reserved for the product



No.

Type

maximum current output

standard configuration

Diagram

1

XT60

20A

Standard



2



Anderson connector

50A

Choose accessories





3



Photovoltaic connector

30A

Choose accessories



Product List

As each region has different requirements for accessories, the following accessories will be different. If you have any questions, please contact customer service.

NO

packing list

Quantity/Type

1

Folding solar panel

Standard

2

Adapters*10

Standard

3

5525/5521 extension cord

Standard 1m

4

Dc wire

The configuration is based on

the DC output port

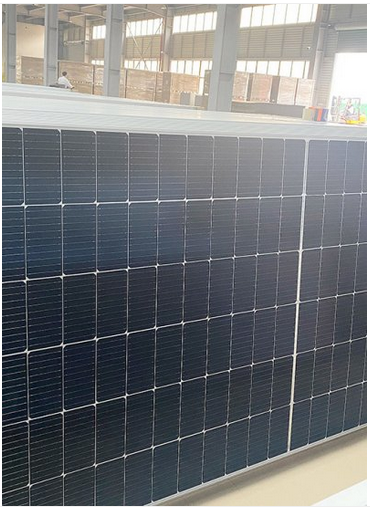

Picture Example:
Q1. MOQ
A：MOQ from our company is required 1 unit.

Q2. Are you manufacturer or trading company?
A：We are professional manufacturersince 2007.

Q3. I need this product and want a system for family/industrial/commercial using, can you help me?
A：Yes,we have professional technology team average 10 years experience,they can design solar power system in accordance with customers' specialrequirements.

Q4. How long is your delivery time?
A：Within 15 days.

Q5. How about your after sales service?
A：Our quality warranty for 3 years, any parts will be shipped for free during warranty period.
